Hacker defender 0.30

Hacker defender v0.3.0
======================

Hacker defender is rootkit for Windows NT 4.0, Windows 2000 and Windows XP.
Main code was written in Delphi 6. Functions for new thread are written
in assembler.

program uses adapted LDE32
LDE32, Length-Disassembler Engine, 32-bit, (x) 1999-2000 Z0MBiE
special edition for REVERT tool
version 1.05

program uses Superfast/Supertiny Compression/Encryption library
Superfast/Supertiny Compression/Encryption library.
(c) 1998 by Jacky Qwerty/29A.


Usage
-----

>hxdef030.exe [inifile]
default hxdef030.ini is used if run without specifying the inifile


Idea
----

	The Main idea of this program was to use some API functions e.g.
WriteProcessMemory and CreateRemoteThread to create a new thread in all
running processes. New thread will rewrite some functions in system modules
(mostly kernel32.dll) and inject fake code which will check API results and
change this result in specific cases.
	Program must be absolutely hidden for all others. Now the user is able
to hide files, process, system services, registry keys. Program installs hidden
backdoors and register as hidden system service.


Version
-------

TODO	-	running root process on system level
	-	add symbol "*" in names of hidden files, process and services
	-	make possible to edit lists during running

0.3.0	+	connectivity, stability and functionality of backdoor improved
	+	backdoor shell runs always on system level
	+	backdoor shell is hidden
	+	registry keys hiding
	x	found and fixed bug in root processes
	-	bug in XP after reboot

0.2.6	x	fixed bug in backdoor

0.2.5	+	fully interactive console
	+	backdoor identification key is now only 256 bits long
	+	improved backdoor installation
	-	bug in backdoor

0.2.1	+	always run as service

0.2.0	+	system service installation
	+	hiding in database of installed services
	+	hidden backdoor
	+	no more working with windows

0.1.1	+	hidden in tasklist
	+	usage - possibility to specify name of inifile
	x	found and then fixed bug in communication
	x	fixed bug in using advapi
	-	found bug with debuggers

0.1.0	+	infection of system services
	+	smaller, tidier, faster code, more stable program
	x	fixed bug in communication

0.0.8	+	hiding files
	+	infection of new processes
	-	can't infect system services
	-	bug in communication



Hooked API
----------

List of API functions which are changed:

Kernel32.FindFirstFileExW
Kernel32.FindNextFileW
Kernel32.CreateProcessW
Ntdll.NtQuerySystemInformation (class 5)
WS2_32.recv
WS2_32.WSARecv
WSOCK32.recv
Kernel32.ReadFile
Advapi32.EnumServicesStatusW
Advapi32.EnumServicesStatusA
Advapi32.RegEnumKeyExW
Advapi32.RegEnumKeyExA


Inifile
-------

	Again, there are more settings in this version. Inifile must contain
four parts: [Hidden Table], [Root Processes], [Hidden Services] and [Hidden
RegKeys].
	Hidden Table is a list of files and directories which should be hidden.
There is no chance to find those files and directories. Programs in this list
will be hidden in tasklist.
	Root Processes is a list of programs which will be immune against
infection. You can see hidden files, directories and programs only with these
root programs. So, root processes are for rootkit admins.
	Hidden Services is a list of service names which will be hidden
in the database of installed services. Service name for the main rootkit
program is HackerDefender030.
	Hidden RegKeys is a list of registry keys which will be hidden. Rootkit
has two keys in registry: HackerDefender030 and LEGACY_HACKERDEFENDER030.


Backdoor
--------

	Rootkit hooks some API functions connected with receiving packets
from the net. If incoming data equals to 256 bits long key the copy of a shell
named "~ �@�.exe" is created in a temp, its instance is created and next
incoming data are redirected to this shell.
	Because rootkit hooks all process in the system all TCP ports on all
servers will be backdoors. This backdoor will work only on servers where
incoming buffer is larger or equal to 256 bits. But this feature is on almost
all standard servers like Apache, IIS, Oracle. So, backdoor is created and it
is hidden because its packets go through common servers on the system. So, you
are not able to find it with classic portscanner and this backdoor can easily
go through firewall. Exception in this are classic proxies which are protocol
oriented for e.g. FTP or HTTP.
	During tests on IIS services was found that HTTP server does not log
any of this connection, FTP and SMTP servers log only disconnection at the end.

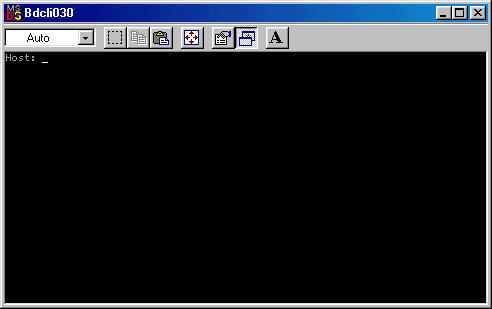

	You have to use special client if want to connect to the backdoor.
Program bdcli030.exe is used for this.

usage: bdcli030.exe host port

	Client for version 0.3.0 is not compatible with servers in version
0.2.6 and older.


Tests
-----

	Following table shows successfulness of rootkit during tests.

Main
 MS Windows XP				-	100%
 MS Windows 2000 5.00.2195 SP2          -       100%
 MS Windows NT 4.0 SP6                  -       100%

Backdoor
 Infection
  MS Windows XP
   IIS 5.1 WWW 				-	100%
   IIS 5.1 SMTP				-	100%
  MS Windows 2000 5.00.2195 SP2
   IIS 5.0 WWW                          -       100%
   IIS 5.0 FTP                          -       100%
   IIS 5.0 SMTP                         -       100%
  MS Windows NT 4.0 SP6
   IIS 3.0 WWW                          -       100%

 Connectivity
  MS Windows XP
   IIS 5.1 WWW 				-	100%
   IIS 5.1 SMTP				-	100%
  MS Windows 2000 5.00.2195 SP2
   IIS 5.0 WWW                          -       100%
   IIS 5.0 FTP				-	100%
   IIS 5.0 SMTP				-	100%
  MS Windows NT 4.0 SP6
   IIS 3.0 WWW                          -       100%

Known Bugs
----------

        Two bugs are known at the moment.

1)	Processes, which are debugged at the moment, can't be infect, because
their debugger has exclusive rights for them. The infection will lose if the
process is debugged during infection. So, it will not be changed and see
everything. I think this is not a serious bug, because there is only small
chance to apply this. I need help with solving this problem. It is not serious,
but i have no idea how to fix it.

2)	Bug occur only on XP boxes after reboot. Only loaded process are
infected during rootkit startup. Process which are loaded later are not
infected from unknown reason. This bug is very serious and will be fixed as
soon as possible.



Files
-----

original archive contains these files:

hxdef030.exe	46 080 b	- program Hacker defender v0.3.0
hxdef030.ini	   997 b	- inifile
bdcli030.exe	29 696 b	- backdoor client
readmecz.txt	 7 119 b	- czech version of help file
readmeen.txt	 7 058 b	- this help file

Holy_Father
